Currie Ram Assist Hardware Kit

Name: Currie Ram Assist Hardware Kit
Brand: Currie
SKU: CE-9702PSC-JL
Price: 25.00 USD
Availability: InStock
Rating: 5.0 (1 reviews)

Hardware kit for installing a PSC ram assist on a Currie HD60, Extreme 60, and 70 Platinum front axle assemblies.

Kit Details:

Fits Currie HD60, Extreme 60, and Platinum 70 Frontends with
1.375" or 1.5" wide Steering Stabilizer Mounts Brackets (see below)

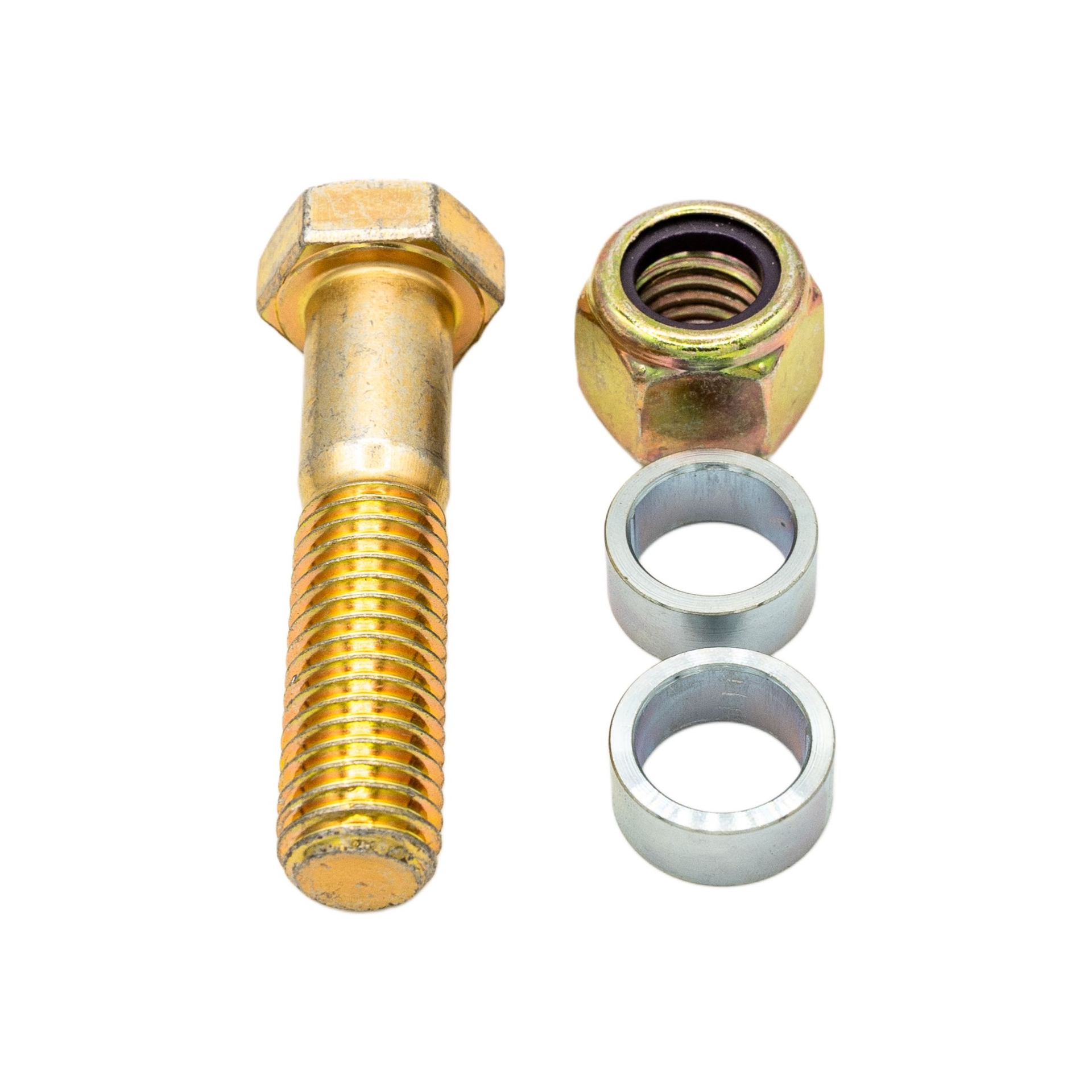

Kit Includes 5/8" Grade 8 Hardware and Spacer Bushings
The Stabilizer Bracket Must be Drilled to Accommodate
the Larger 5/8" Bolt Required for the PSC Ram Rod End
See Information Below

SKU: CE-9702PSC-JL

Select Kit *: Please select

▼

Please select

Narrow Hardware Kit (1.375 in. gap)

Wide Hardware Kit (1.5 in. gap)

$25.00

Qty:

Measure the gap in the bracket as shown below to determine the appropriate kit for your application. Drill the bracket to accommodate the 5/8 inch bolt supplied in the kit.

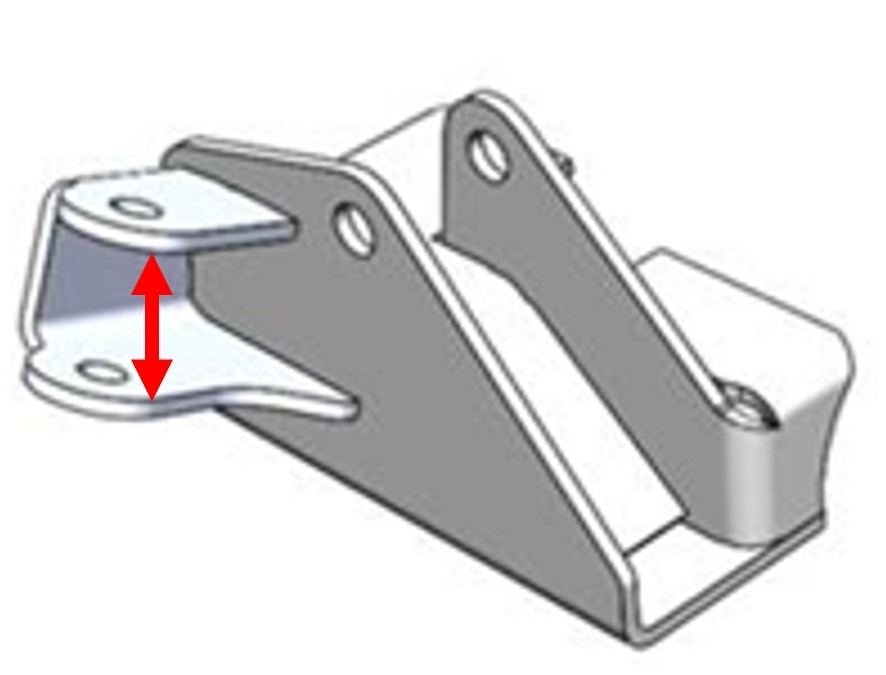

		Measure the gap (red arrow) between the top and bottom of the steering stabilizer bracket to determine the required kit The gap should measure either: 1 3/8 in. gap = Narrow kit 1 1/2 in. gap = Wide kit

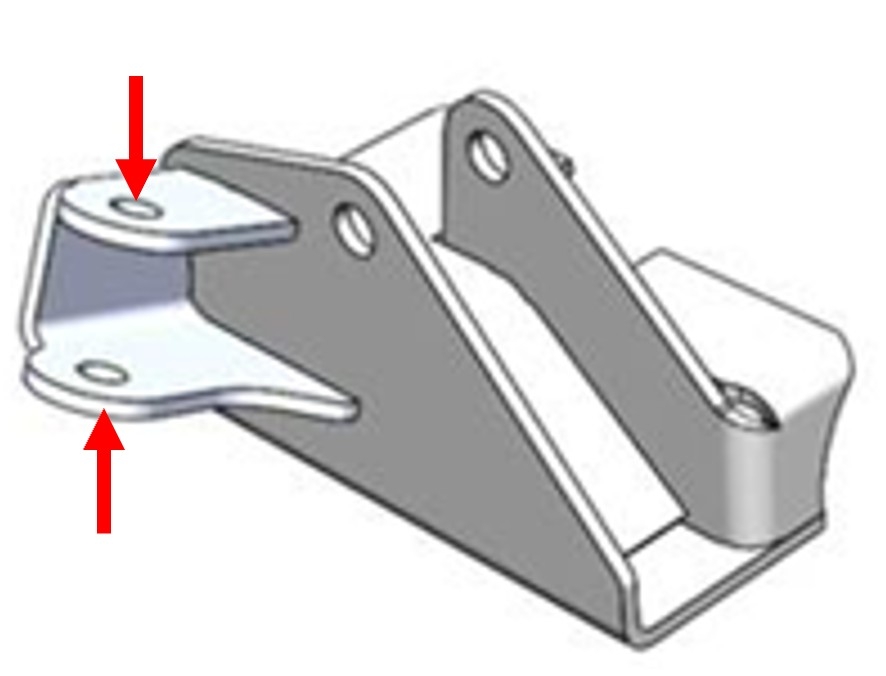

		Drill holes (red arrows) to 5/8" to accommodate the larger grade 8 bolt required for the PSC ram assist rod end

Details

Measure the gap in the bracket as shown below to determine the appropriate kit for your application. Drill the bracket to accommodate the 5/8 inch bolt supplied in the kit.

		Measure the gap (red arrow) between the top and bottom of the steering stabilizer bracket to determine the required kit The gap should measure either: 1 3/8 in. gap = Narrow kit 1 1/2 in. gap = Wide kit

		Drill holes (red arrows) to 5/8" to accommodate the larger grade 8 bolt required for the PSC ram assist rod end
