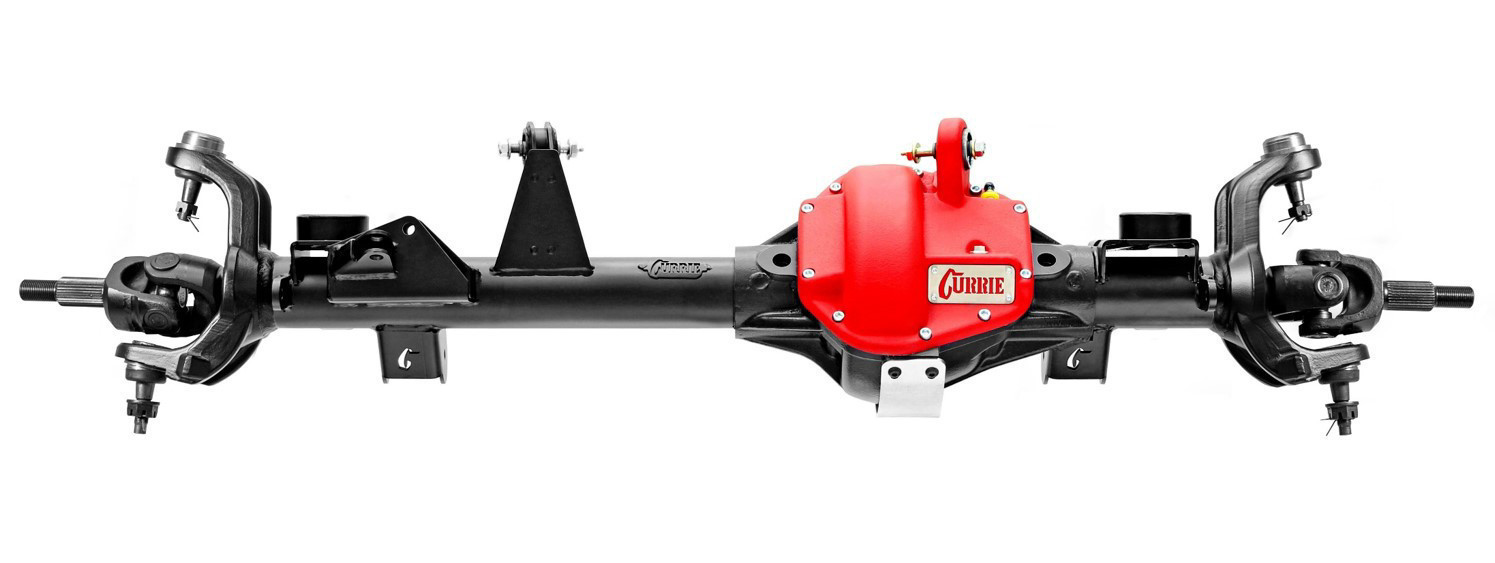

Currie HD60 - Fits 2007-2018 Jeep Wrangler JK - Front Axle - 4.88 Gear Ratio - ARB Air Locker - CE-KF6400A48

The Currie HD60 front axle assembly for 2007 thru 2018 Wrangler JK/JKU is a direct bolt-in solution that delivers next-level strength and reliability. The HD60 features our massively reinforced rotated 60-series high-clearance center section, 3.5-inch tubes, chromoly axles, and Currie heavy-duty forged inner knuckles that accept the factory outer JK steering and brake assemblies. Upgrade to an HD60 and enjoy your off-road adventures without worrying about front-end failure.


Details:

  • 65.375 in. Factory JK Width
  • 4.88 Gear Ratio
  • ARB Air Locker
  • HD60 High-Clearance Center Section with Rotated Cover Improves Obstacle Slide-Over
  • High Volume Flow-Thru Pinion Oiling System Keeps Bearings Bathed in Cool Oil
  • Rock Slider Low-Friction Skid Plate Glides Over Rocks
  • 3.5 x .375-inch DOM Axle Tubes are Twice the Strength of the Stock Tubes
  • Currie Chromoly 35-Spline Inner and 32-Spline JK Outer Axles
  • Currie Heavy-Duty Forged JK Inner Knuckles
  • Currie Heavy-Gauge Laser Cut Brackets
  • Upgraded 1350 Pinion Yoke
  • Currie Rock-Proof Nodular Iron Differential Cover
  • Satin Black Powder Coat Finish For Long Lasting Protection
  • Retains the Vehicle's Stock Outer Steering Knuckles, Brake Assemblies, and Wheels
  • Requires Aftermarket High-Clearance Tie Rod Assembly (see note below)

SKU: CE-KF6400A48
*
$7,500.00

The HD60 high-pinion axle for 2007 thru 2018 Wrangler JK/JKU features heavy-duty brackets and mounts in the stock location for a direct bolt-in fit. The vehicle's factory outer steering and brake components must be transferred to the HD60 to complete the assembly. A high-clearance aftermarket tie rod is required (see notes below). The vehicle's factory driveshaft will require modification or replacement to accommodate the larger 60 series housing and 1350 series u-joint



Currie HD60 Features

  Designed and optimized using computer simulation, the HD60 is reinforced in critical areas with thicker walls and heavier webbing to deliver maximum strength, durability, and rigidity

  HD60 radius bottom center section with replaceable AR400 skid plate delivers unmatched ground clearance, and improved obstacle slide-over

  Gear diameter equals strength - the HD60's 9.75" gear (right) provides greater torque and load handling capacity when compared to the stock 8.26" gear (left)

  Large diameter outer pinion bearing (right) is designed for the demands of reverse rotation/high pinion housings. Stock low pinion bearing (left)

  High volume flow-thru recirculating oil system keeps pinion bearings bathed in cool oil, reducing operating temperatures and eliminating oil starvation issues

  Large 3.5 in. diameter .375 wall axle tubes (left) are more than 3x the strength of the stock tubes (right) without being overweight or sacrificing ground clearance

  Super strong Currie nodular iron front cover protects expensive internals, adds structural support to the housing's face flange, and locates the driver’s side upper control arm mount

  Lower control arm mounts are one-piece construction with integrated skid plates to help fend off bracket-seeking rocks

Powder Coat   UV Stabel Satin black powder coat finish adds long-lasting protection against rust and corrosion to keep your HD60 looking its best





Notes

Front Axle Disconnect (FAD): This axle assembly eliminates the factory FAD and requires a computer programmer, such as the Tazer Mini or Tazer Lite, to disable the factory sensor and turn off the FAD warning message.

Tie Rod: The HD60 housing requires the use of a high-clearance aftermarket tie rod to prevent tie rod/housing interference at full turn. JK/JKU-compatible high-clearance tie rods are available from Steer Smarts (Yeti XD P/N 78065001)

Driveshaft - A replacement driveshaft compatible with the larger 60 housing and 1350 yoke is required. Spicer PN 10113216 is recommended (verify manufacturer vehicle fitment)

ABS Sensors: This does not include ABS sensors, the factory sensors from the stock axle must be retained and installed on the Currie housing

Computer Programming: Vehicles require a computer programmer to reset the gear ratio and tire height in the vehicle's computer for the proper function of the vehicles stability control and transmission shift points

Steering Stabilizer: The HD60 ram assist bracket requires an aftermarket stud-style trac bar bolt to accommodate a steering stabilizer. Trac bar bolts are available from FOX Racing P/N 803-02-028 or Synergy Manufacturing P/N 8806-01

The HD60 high-pinion axle for 2007 thru 2018 Wrangler JK/JKU features heavy-duty brackets and mounts in the stock location for a direct bolt-in fit. The vehicle's factory outer steering and brake components must be transferred to the HD60 to complete the assembly. A high-clearance aftermarket tie rod is required (see notes below). The vehicle's factory driveshaft will require modification or replacement to accommodate the larger 60 series housing and 1350 series u-joint



Currie HD60 Features

  Designed and optimized using computer simulation, the HD60 is reinforced in critical areas with thicker walls and heavier webbing to deliver maximum strength, durability, and rigidity

  HD60 radius bottom center section with replaceable AR400 skid plate delivers unmatched ground clearance, and improved obstacle slide-over

  Gear diameter equals strength - the HD60's 9.75" gear (right) provides greater torque and load handling capacity when compared to the stock 8.26" gear (left)

  Large diameter outer pinion bearing (right) is designed for the demands of reverse rotation/high pinion housings. Stock low pinion bearing (left)

  High volume flow-thru recirculating oil system keeps pinion bearings bathed in cool oil, reducing operating temperatures and eliminating oil starvation issues

  Large 3.5 in. diameter .375 wall axle tubes (left) are more than 3x the strength of the stock tubes (right) without being overweight or sacrificing ground clearance

  Super strong Currie nodular iron front cover protects expensive internals, adds structural support to the housing's face flange, and locates the driver’s side upper control arm mount

  Lower control arm mounts are one-piece construction with integrated skid plates to help fend off bracket-seeking rocks

Powder Coat   UV Stabel Satin black powder coat finish adds long-lasting protection against rust and corrosion to keep your HD60 looking its best





Notes

Front Axle Disconnect (FAD): This axle assembly eliminates the factory FAD and requires a computer programmer, such as the Tazer Mini or Tazer Lite, to disable the factory sensor and turn off the FAD warning message.

Tie Rod: The HD60 housing requires the use of a high-clearance aftermarket tie rod to prevent tie rod/housing interference at full turn. JK/JKU-compatible high-clearance tie rods are available from Steer Smarts (Yeti XD P/N 78065001)

Driveshaft - A replacement driveshaft compatible with the larger 60 housing and 1350 yoke is required. Spicer PN 10113216 is recommended (verify manufacturer vehicle fitment)

ABS Sensors: This does not include ABS sensors, the factory sensors from the stock axle must be retained and installed on the Currie housing

Computer Programming: Vehicles require a computer programmer to reset the gear ratio and tire height in the vehicle's computer for the proper function of the vehicles stability control and transmission shift points

Steering Stabilizer: The HD60 ram assist bracket requires an aftermarket stud-style trac bar bolt to accommodate a steering stabilizer. Trac bar bolts are available from FOX Racing P/N 803-02-028 or Synergy Manufacturing P/N 8806-01

Products specifications
Vehicle Fitment 2007 thru 2018 Jeep Wrangler JK/JKU
Center Section HD60 high-pinion nodular iron radius bottom center section with thick walls and webbing, and integrated skid plate
Pinion Bearing Large diameter front pinion bearing matched to rear bearing
Pinion Oiling High volume flow-thru recirculating oil system
Gear Set Dana 60™ reverse rotation thick gear sets (compatible with super 60 reverse cut gears)
Differential Carrier Standard Dana 60 4.10 and down differential carriers with thick ring gears for all gear ratios
Pinion Yoke 1350 u-joint
Skid Plate AR400 hardened steel skid plate
Differential Cover Currie nodular-iron cover, Red
Axle Tubes 3.5 inch diameter x .375 wall DOM tube
Axles Currie Chromoly 35-Spline Inner and chromoly 32-Spline JK Outer Axles
End Forgings Currie JK heavy-duty forged steel inner C’s
Steering Knuckles Accepts the vehicle's factory steering knuckles
Brake Rotors Accepts the vehicle's factory front brake assemblies
Brake Calipers Accepts the vehicle's factory front calipers
Tie Rod Requires a high-clearance aftermarket tie rod similar to the Steer Smarts (Yeti XD P/N 78065001)
Suspension Brackets Heavy gauge 3/16 inch steel mounting brackets
Geometry Optimized for stock height up to 4 inch of lift
Track Bar Mount Ram mounting brackets welded to housing, setup for PSC 8” travel steering ram (not compatible with stock steering stabilizer)
Width 65.375-inch stock Wrangler JK/JKU width
Oil Capacity 2.5 quarts of 75W-140 synthetic gear oil (API GL-5 Rated)
Finish Black satin powder coat
