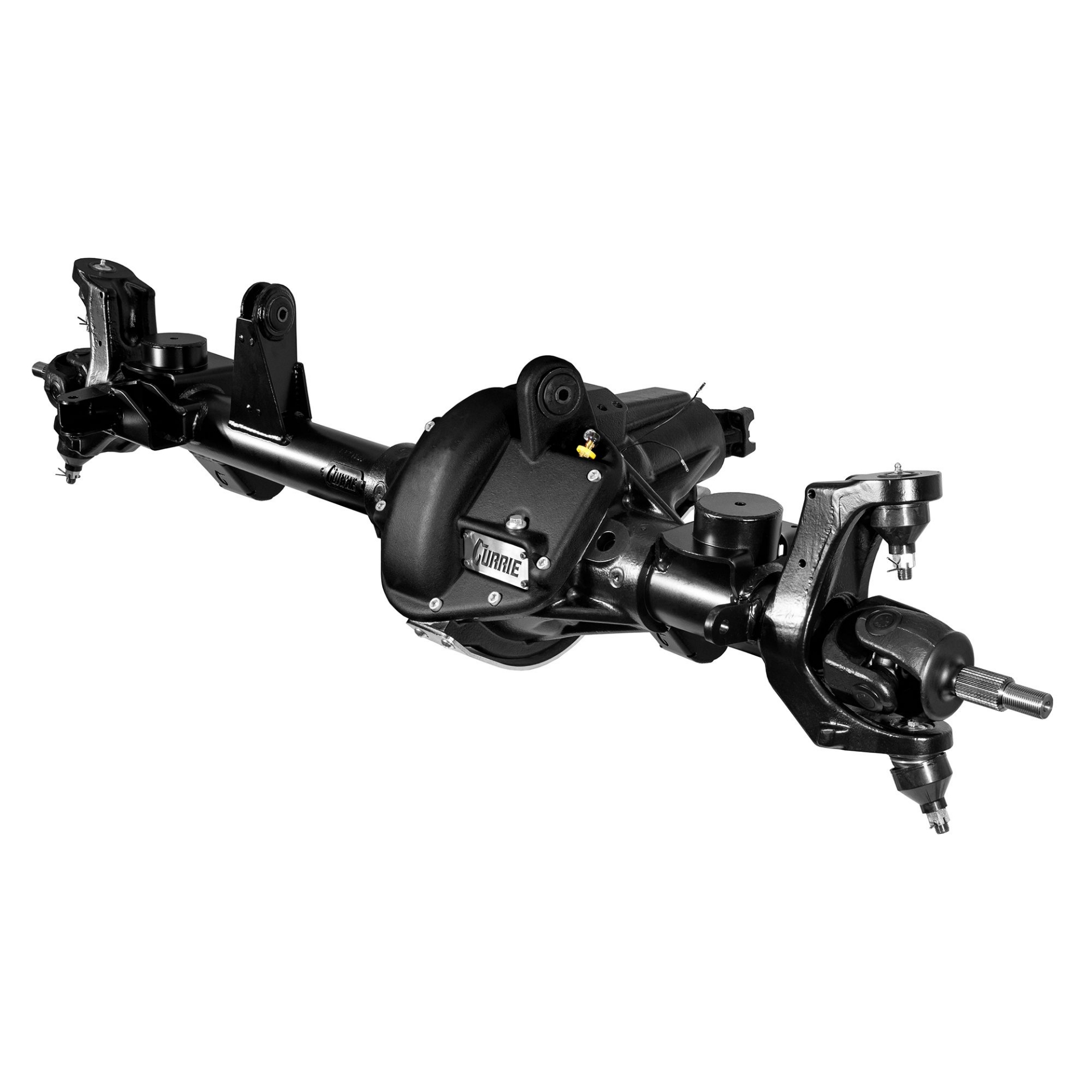

Currie HD60 - Jeep Gladiator Front Axle Assembly

Name: Currie HD60 - Jeep Gladiator Front Axle Assembly
Brand: Currie
Availability: InStock
Rating: 5.0 (1 reviews)

Recommended Gearing By Tire Size
Engine	35" Tire	37" Tire	39" Tire*	40" Tire*
Gas	4.88 Gears	5.13 Gears	5.38 Gears	5.38 Gears
Diesel	4.10 Gears	4.56 Gears	4.56 Gears	4.88 Gears
Gear ratio suggestions are based on mixed highway and off-road usage. Please contact a Currie specialist at (714) 528-6957 if you have any questions. *Currie does not recommend using 39" and larger tires with the factory front unit bearings or with rear semi-float axles.

The Currie HD60 front axle assembly for the 2020 and newer Jeep Gladiator provides significant benefits for truck enthusiasts seeking enhanced strength and durability. The HD60 front features our massively reinforced rotated 60-series high-clearance center section, 3.5-inch tubes, chromoly axles with 1-ton u-joints, and Currie heavy-duty forged inner knuckles that accept the factory outer steering and brake assemblies. Give your Gladiator a fighting chance, run big tires, and forget about frontend failures - Check out the complete set of features below.

Details:

68 in. Stock Gladiator Width
HD60 High-Clearance Center Section with Rotated Cover Improves Obstacle Slide-Over
High Volume Flow-Thru Pinion Oiling System Keeps Bearings Bathed in Cool Oil
Hardened Steel Rock Slider Skid Plate Sides Over Trail Obstacles with Ease
3.5 x .375-inch DOM Axle Tubes Deliver Industry-Leading Strength
Currie Chromoly 35-Spline Inner and 32-Spline Outer Axles with Larger 1480 1-Ton U-Joints Deliver Unmatched End-to-End Strength
Currie Heavy-Duty Forged JT Inner Knuckles
Currie Heavy-Gauge Laser Cut Brackets
Upgraded 1350 Pinion Yoke
Choice of Selectable Locker and Gear Ratio
Currie Rock-Proof Nodular Iron Differential Cover
Satin Black Powder Coat Finish for Long Lasting Protection
Retains the Vehicle's Stock Outer Steering Knuckles, Brake Assemblies, and Wheels
Requires Aftermarket High Clearance Tie Rod Assembly (see notes below)

*** SELECT OPTIONS TO BUILD ***

Select Ratio *: Please select

▼

Please select

4.56

4.88

5.13

5.38
Select Locker *: Please select

▼

Please select

ARB Air Locker

Electric Locker
Add Gear Oil *: Please select

▼

Please select

No Gear Oil

Currie 4x4 Performance Gear Oil (3 Quarts) [+$51.00]

Price: $7,750.00

Sale price: $6,587.50

Qty:

The HD60 high-pinion axle for the 2020 and newer Jeep Gladiator truck features heavy-duty brackets and mounts in the stock location for a direct bolt-in fit. The vehicle's factory outer steering and brake components must be transferred to the HD60 to complete the assembly. A high-clearance aftermarket tie rod is required (see notes below). The vehicle's factory driveshaft will require modification or replacement to accommodate the larger 60 series housing and 1350 series u-joint

Product Features:

Currie HD60 High-Pinion

Designed and optimized using computer simulation, the HD60 is reinforced in critical areas with thicker walls and heavier webbing to deliver maximum strength, durability, and rigidity

Radius Center Section

HD60 radius bottom center section with replaceable AR400 skid plate delivers unmatched ground clearance, and improved obstacle slide-over

HD60 Gear Strength

Gear diameter equals strength - the HD60's 9.75" gear (right) provides greater torque and load handling capacity when compared to the stock 8.26" gear (left)

Larger Pinion Bearing

Large diameter outer pinion bearing (right) is designed for the demands of reverse rotation/high pinion housings. Stock low pinion bearing (left)

Pinion Oiling

High volume flow-thru recirculating oil system keeps pinion bearings bathed in cool oil, reducing operating temperatures and eliminating oil starvation issues

Tube Strength

Large 3.5 in. diameter .375 wall axle tubes (left) are more than 3x the strength of the stock tubes (right) without being overweight or sacrificing ground clearance

Geometry

Front axle steering geometry is optimized for lifted vehicles and large tires, featuring 5° of caster and 5° of pinion angle

Pinion Yoke

The upgraded 1350 pinion yoke provides increased strength and reliability over the failure-prone factory CV Joint

1-Ton Axle U-Joints

HD60 chromoly axles feature larger 1480 series 1-ton u-joints (right) that are 146% stronger than the stock 1350 u-joint (left) for unmatched end-to-end strength

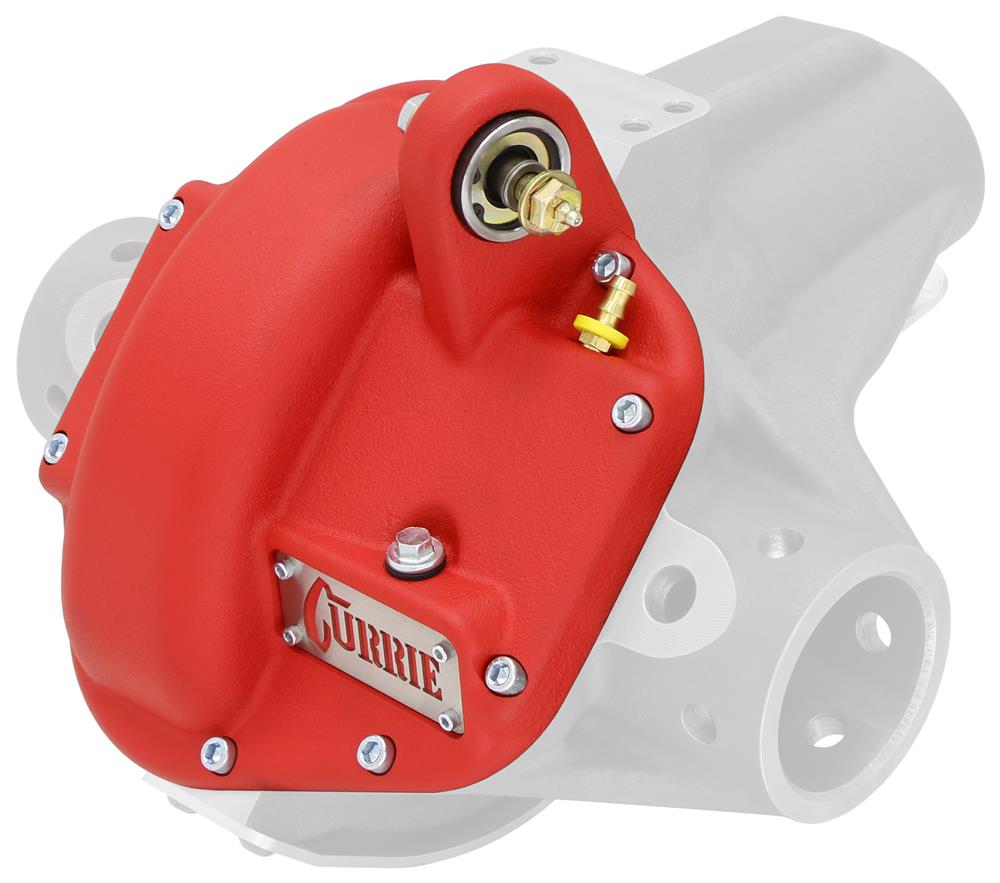

Differential Cover

Currie rock-proof nodular iron front cover protects expensive internals, adds structural support to the housing's face flange, and locates the driver’s side upper control arm mount

Control Arm Mounts

Lower control arm mounts are one-piece construction with integrated skid plates to help fend off bracket-seeking rocks

Powder Coat Finish

UV Stable Satin black powder coat finish adds long-lasting protection against rust and corrosion to keep your Currie HD60 looking its best

Notes

Front Axle Disconnect (FAD): This axle assembly eliminates the factory FAD and requires a computer programmer, such as the Tazer Mini or Tazer Lite, to disable the factory sensor and turn off the FAD warning message.

Tie Rod: The HD60 housing requires the use of a high-clearance aftermarket tie rod to prevent tie rod/housing interference at full turn. JL/JT Rubicon-compatible high-clearance tie rods are available from Steer Smarts (Yeti XD P/N 78088001)

ABS Sensors: The factory ABS sensors from the stock axle must be retained and installed on the Currie HD 60 housing

Driveshaft - A replacement driveshaft compatible with the larger 60 housing and 1350 yoke is required. Spicer PN 10097841 is recommended (verify manufacturer vehicle fitment)

Steering Stabilizer: The HD60 Ram assist bracket requires an aftermarket stud-style track bar bolt to accommodate a steering stabilizer. Trac bar bolts are available from FOX Racing P/N 803-02-028 or Synergy Manufacturing P/N 8806-01
