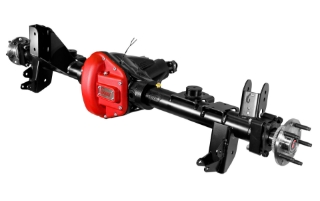

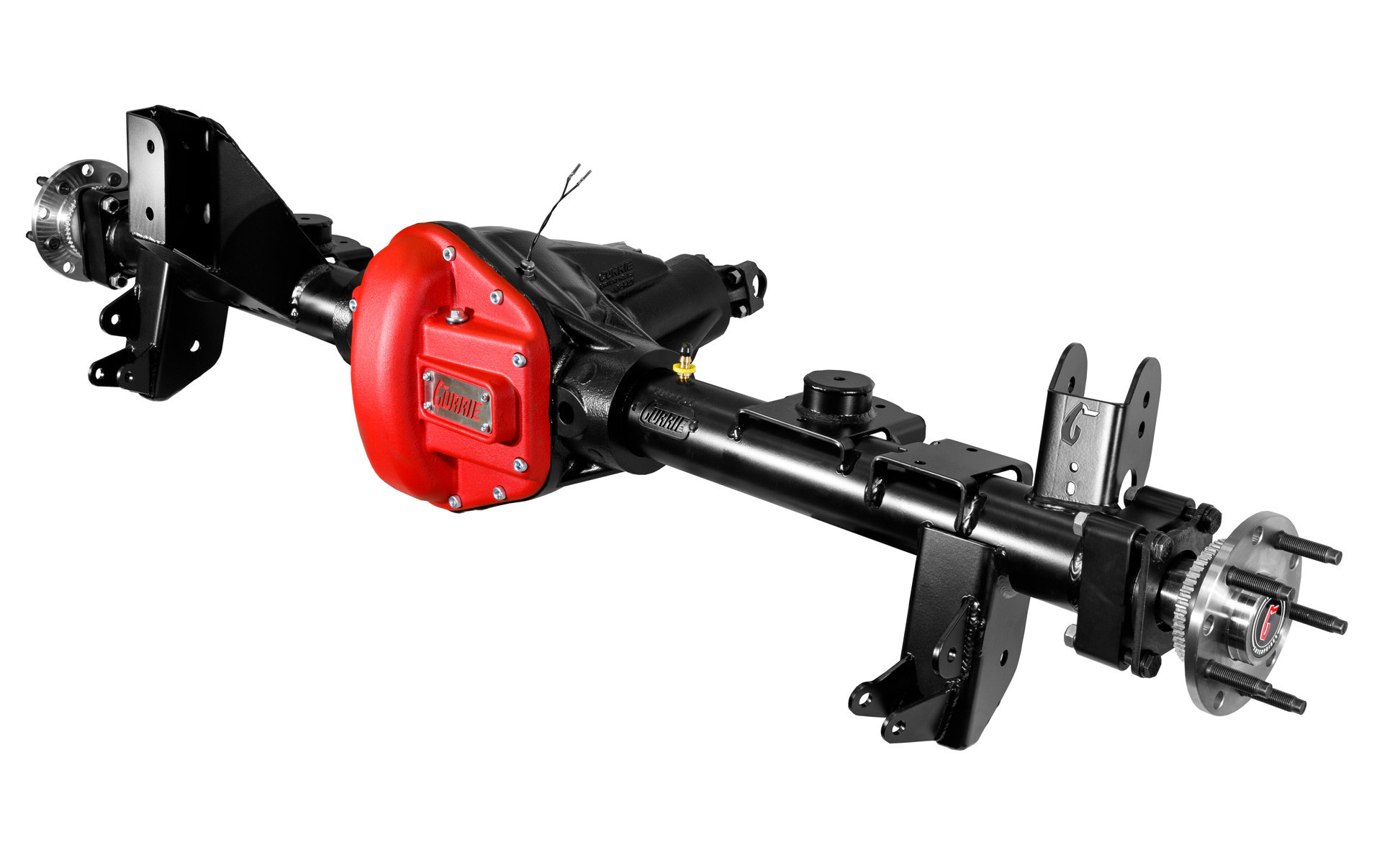

Currie HD60 - Fits 2007-2018 Jeep Wrangler JK - Rear Axle - 5.38 Gear Ratio - Eaton ELocker - CE-KR6100E53

The Currie HD60 rear axle for 2007 thru 2018 Jeep Wrangler JK/JKU is the perfect upgrade for off-road enthusiasts or overlanders seeking enhanced strength and durability. The HD60 rear features our massively reinforced 60-series center section, large 3.5-inch diameter axle tubes, and 40-spline axles, greatly upgrading strength and reliability beyond the stock Wrangle rear axle assembly. Additionally, the HD60 retains a factory wheel bolt pattern so that you can keep those nice wheels.


Details:

  • Direct Bolt-in Fit for Wrangler JK/JKU
  • Factory 65.375 in. Width
  • 5.38 Gear Ratio
  • Eaton ELocker
  • Heavy-Duty 60-Series Low-Pinion Center Section Features Thicker Walls and Webbing for Unmatched Strength
  • 3.5 x .375-inch DOM Axle Tubes Deliver Industry-Leading Strength
  • 40-Spline Chromoly Axles are More than 2x the Strength of Stock Axles, and 1.5x Stronger than the Competition's 35-Spline Axles
  • Currie Heavy-Gauge OE Fitment Brackets
  • Currie Rock-Proof Nodular Iron Differential Cover
  • Upgraded 1350 Pinion Yoke
  • Satin Black Powder Coat for Long Lasting Protection
  • Retains Stock 5x5 Wheel Bolt Pattern
  • Retains the Factory Wrangler JK Rear Brake Components
  • See notes below for additional details

SKU: CE-KR6100E53
*
$6,999.00

The Currie LP60 low-pinion rear axle for the 2007 and newer Wrangler JK/JKU is a direct bolt-in axle assembly with all required brackets and mounts in place. The vehicle's factory brakes will be retained and installed on the new HD60 axle. The factory driveshaft will require modification or replacement to accommodate the larger 60-series housing and 1350-series u-joint.



Currie LP60 Axle Features

  Designed and optimized using computer simulation, the HD60 is reinforced in critical areas with thicker walls and heavier webbing  to deliver maximum strength, durability, and rigidity

  Gear diameter equals strength - the HD60's 9.75" gear (right) provides greater torque and load handling capacity when compared to the stock 8.66" gear (left)

  Large 3.5 in. diameter .375 wall axle tubes (left) are more than 3x the strength of the stock tubes (right) without being overweight or sacrificing ground clearance

  Massive Set 80 axle bearings (right) have a greater load-carrying capacity and enable increased axle diameter through the bearing for greater strength and durability compared to the stock reared's Set 10 bearings (left)



40-spline semi-floating axles (right) are the industry's largest and strongest standard axle offering. Stock Jeep axle (left)


  Axles feature the factory 5x5 wheel bolt pattern so that you can keep those nice wheels

Laser Cut Brackets

Heavy-duty laser-cut brackets are positioned to achieve the proper pinion angle for stock height or lifted vehicles


  Currie rock-proof nodular iron front cover protects expensive internals and adds structural support to the housing's face flange

Powder Coat   UV Stabel Satin black powder coat finish adds long-lasting protection against rust and corrosion to keep your HD60 looking its best





Notes

ABS Sensors- The stock axle must be retained and installed on the Currie housing

Driveshaft- A replacement driveshaft compatible with the larger 60 housing and 1350 yoke is required. Spicer PN10113217is recommended (verify manufacturer vehicle fitment)

Brake Components -Retains the stock rear disk brake rotors or calipers; mounting brackets are designed to reuse the stock factory brake components from the vehicle.

Wheel and Tire Size- 17-inch or larger wheels are required for proper clearance of the brake calipers. The maximum recommended tire size is 39 inches for semi-floating axles.

Overall Width -Axle width is 65.375 inches (Factory stock) between wheel mounting surfaces

The Currie LP60 low-pinion rear axle for the 2007 and newer Wrangler JK/JKU is a direct bolt-in axle assembly with all required brackets and mounts in place. The vehicle's factory brakes will be retained and installed on the new HD60 axle. The factory driveshaft will require modification or replacement to accommodate the larger 60-series housing and 1350-series u-joint.



Currie LP60 Axle Features

  Designed and optimized using computer simulation, the HD60 is reinforced in critical areas with thicker walls and heavier webbing  to deliver maximum strength, durability, and rigidity

  Gear diameter equals strength - the HD60's 9.75" gear (right) provides greater torque and load handling capacity when compared to the stock 8.66" gear (left)

  Large 3.5 in. diameter .375 wall axle tubes (left) are more than 3x the strength of the stock tubes (right) without being overweight or sacrificing ground clearance

  Massive Set 80 axle bearings (right) have a greater load-carrying capacity and enable increased axle diameter through the bearing for greater strength and durability compared to the stock reared's Set 10 bearings (left)



40-spline semi-floating axles (right) are the industry's largest and strongest standard axle offering. Stock Jeep axle (left)


  Axles feature the factory 5x5 wheel bolt pattern so that you can keep those nice wheels

Laser Cut Brackets

Heavy-duty laser-cut brackets are positioned to achieve the proper pinion angle for stock height or lifted vehicles


  Currie rock-proof nodular iron front cover protects expensive internals and adds structural support to the housing's face flange

Powder Coat   UV Stabel Satin black powder coat finish adds long-lasting protection against rust and corrosion to keep your HD60 looking its best





Notes

ABS Sensors- The stock axle must be retained and installed on the Currie housing

Driveshaft- A replacement driveshaft compatible with the larger 60 housing and 1350 yoke is required. Spicer PN10113217is recommended (verify manufacturer vehicle fitment)

Brake Components -Retains the stock rear disk brake rotors or calipers; mounting brackets are designed to reuse the stock factory brake components from the vehicle.

Wheel and Tire Size- 17-inch or larger wheels are required for proper clearance of the brake calipers. The maximum recommended tire size is 39 inches for semi-floating axles.

Overall Width -Axle width is 65.375 inches (Factory stock) between wheel mounting surfaces

Products specifications
Vehicle Fitment 2007 thru 2018 Jeep Wrangler JK/JKU
Center Section Currie LP60 nodular Iron low-pinion center section with thick walls and webbing
Gear Set Standard Dana 60™ low-pinion
Pinion Yoke 1350 u-joint
Differential Cover Currie nodular-iron cover with gasketed fill plug with dipstick, Red
Axle Tubes 3.5 in. diameter, .375 in. wall DOM tube
Axle Bearings Set 80 tapered roller bearing
Axles Currie Performance semi-floating, 40-spline (1.7” diameter) axles with tone rings installed for ABS/ESP retention
Brake Rotors Not included, reuses the stock JK rear rotors
Brake Calipers Not included, reuses the stock JK rear calipers
Suspension Brackets Heavy gauge 3/16” steel mounting brackets
Geometry Optimized for stock height up to 4” of lift
Width 65.375 inches between wheel mounting surfaces (stock JK width)
Wheel Bolt Pattern 5 on 5 inch with 1/2 inch studs (standard JK pattern)
Finish Black satin powder coat
