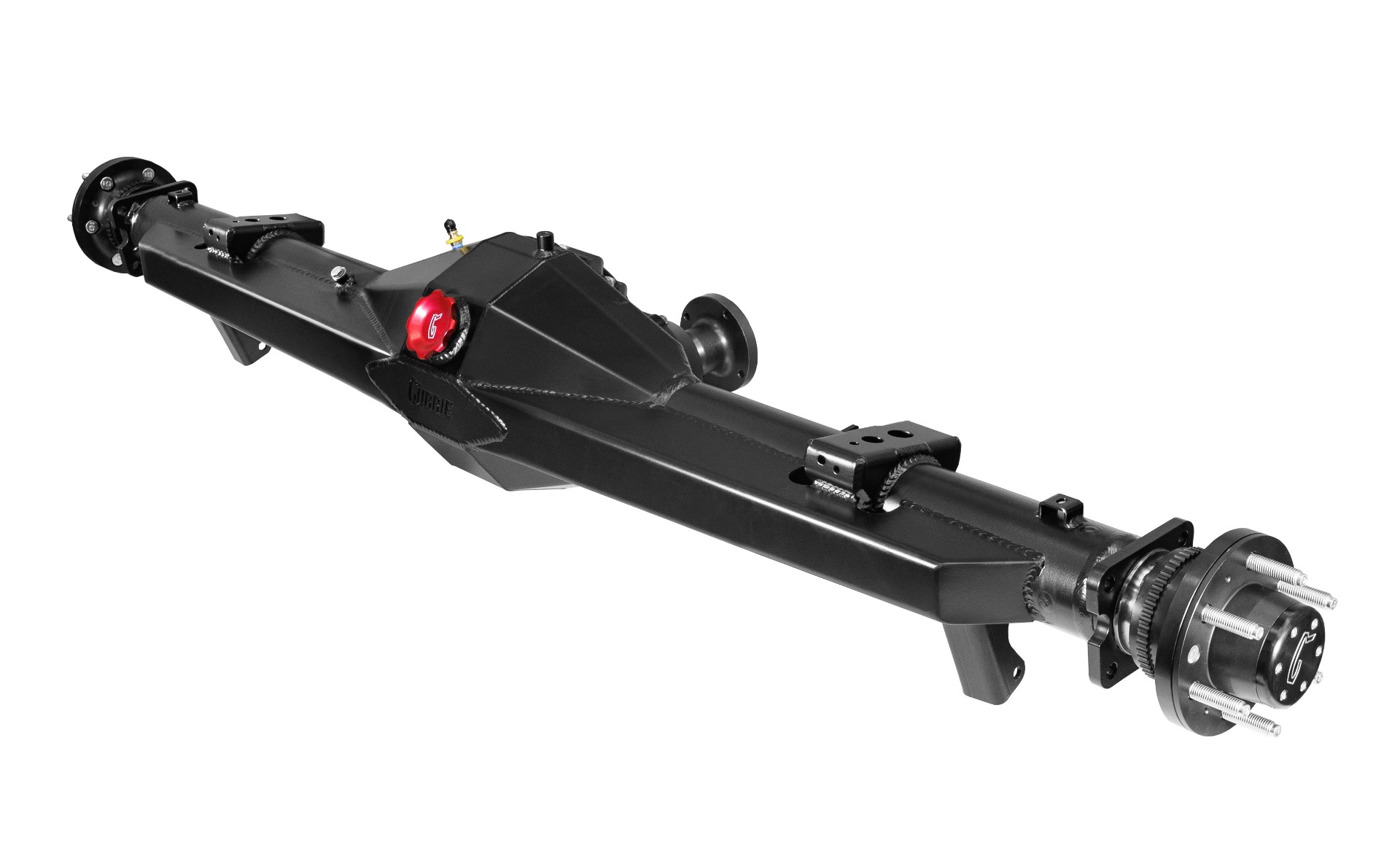

Currie F9 - Full-Float Raptor/F-150 Axle Assembly

Product Files

Currie® F9 fabricated 9-inch full-float axle assembly for 2010 thru 2020 Ford Raptor trucks is the ultimate upgrade for the Raptor owner who wants to have fun with his truck and not worry about bending or breaking the factory rear end!


Included In Base Price:

  • Currie F9 Fabricated Chromoly Housing with 4.0 in. Chromoly Tubes
  • Red Inspection/Fill Cap and Drain Plug for Easy Service
  • 2.5 in. Heat-Treated Chromoly Spindles
  • Billet Steel Full-Float Hubs with Factory Bolt Pattern and 14mm Studs
  • Heavy-Duty Black Aluminum Pinion Support with Steel Seal Shield
  • 35-Spline Chromoly Full-Float Axles
  • Choice of Differential Type and Gear Ratio
  • Choice of Pinion Yoke
  • Unfinished or Satin Black Powder Coat Finish
  • Retains the Factory Raptor Rear Brake Assemblies
  • Professionally Setup and Fully-Assembled
  • See Notes Below

*** SELECT OPTIONS TO BUILD AND PRICE ***

SKU: Raptor
Estimated Lead Time: 6 week(s)
*
Please select
 ▼
$7,765.00
Sale price: $6,988.50



NOTES:

  • Not compatible with 2018 F-150 (non-Raptor) trucks equipped with electronic parking brakes
  • Rearend is built to 76.25-inch width
  • The stock factory brake rotor center register diameter must be opened up to 3.700 inches to slide over the full-floating hub
  • Reuses the stock factory Raptor and pre-2018 F150 brake calipers, backing plates, and ABS sensors
  • The customer must install hubs and bearings following the installation of the stock brake backing plates
  • Requires a wheel with a 3.700-inch center hub hole to clear the full-floating hub



NOTES:

  • Not compatible with 2018 F-150 (non-Raptor) trucks equipped with electronic parking brakes
  • Rearend is built to 76.25-inch width
  • The stock factory brake rotor center register diameter must be opened up to 3.700 inches to slide over the full-floating hub
  • Reuses the stock factory Raptor and pre-2018 F150 brake calipers, backing plates, and ABS sensors
  • The customer must install hubs and bearings following the installation of the stock brake backing plates
  • Requires a wheel with a 3.700-inch center hub hole to clear the full-floating hub
