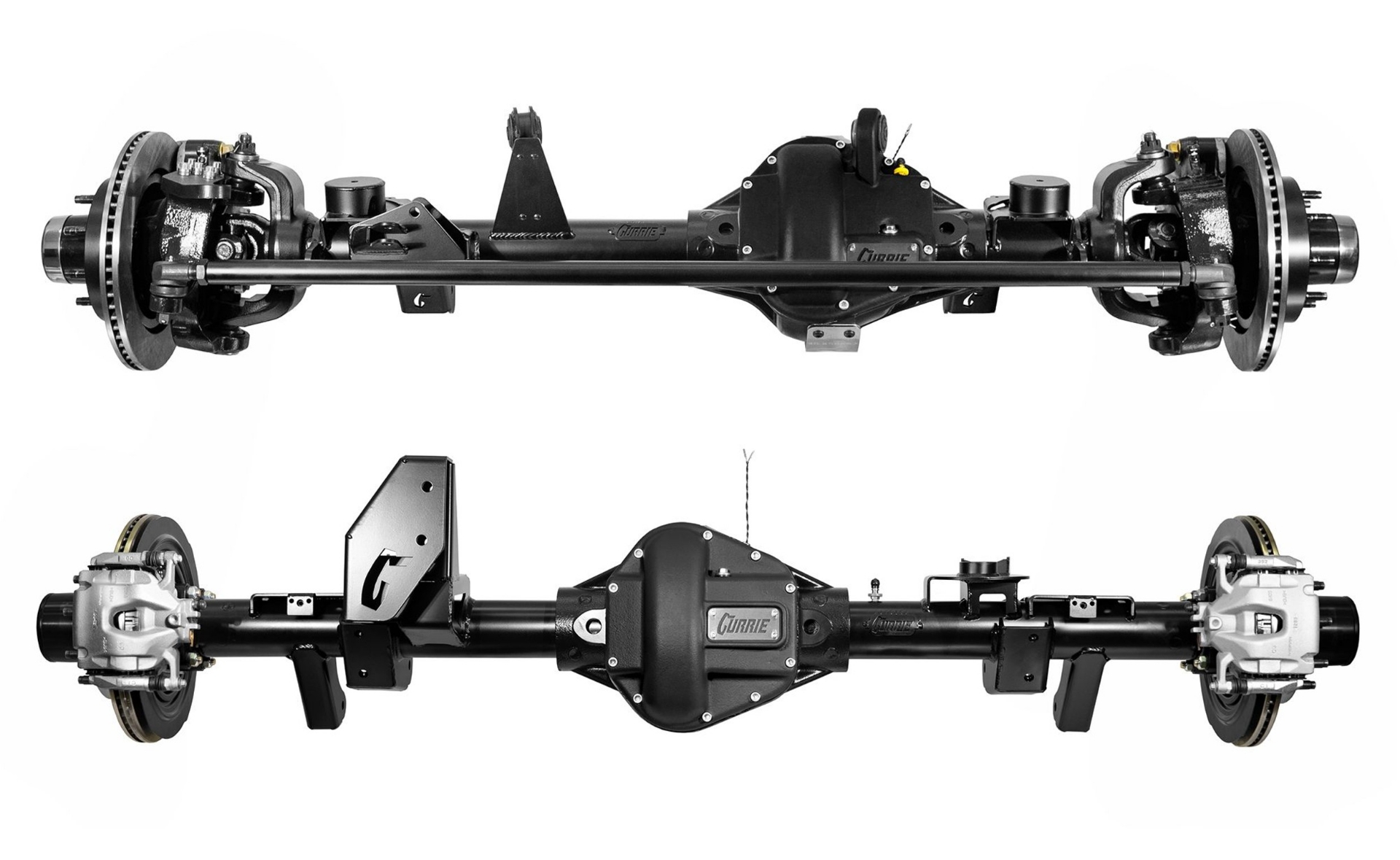

Currie Extreme 60 - Jeep Wrangler JK Axle Assemblies

The Currie Extreme 60 1-ton front and rear axle assemblies for the Jeep Wrangler JK and JKU are designed for severe off-road use with up to 42-inch tall tires and V8 horsepower. The reinforced Extreme 60 center castings feature thick walls and heavy webbing, providing ultimate gear strength and durability. The front axle incorporates complete 1-ton inner and outer steering assemblies, and the rear implements 40-spline axles and billet full-floating hubs to deliver ultimate reliability. If you seek out the most challenging routes and most formidable obstacles to conquer, the Extreme 60 axles are a natural choice.


Continue the journey and view the full details and features below:


Currie Extreme 60 Details:

  • Available in 70 or 72.5-Inch Axle Widths
  • Choice of Front or Rear only, or Full Axle Set
  • Choice of Selectable Locker and Gear Ratio

Exclusive Extreme 60 Features:

  • Front High-Clearance Center Section with Rotated Cover with Low-Friction Skid Plate Improves Obstacle Slide-Over
  • 1-Ton Front Inner C's and Outer Steering Knuckles with Currie F350 Unit Bearings are Baja Proven and Ultra4 Tested Tough
  • Front Heat-Treated Chromoly Tie Rod with 1-Ton Ends
  • Full-Float Rear Billet Hubs and 40-Spline Axles Deliver Maximum Strength and Durability
  • Massive 14.250 in. Front and 13.75 in. Rear Vented Rotors Deliver Abundant Stopping Power
  • 8-Lug Wheel Bolt Pattern for Ultimate Reliability
  • UV Stable Satin Black Powder Coat Finish

*
*
*
*
*
*
*
$9,500.00

The Extreme 60 axles for 2007 thru 2018 Jeep JK Wrangler are complete bolt-in axle assemblies with all required brackets and mounts in place. The vehicle's factory driveshafts will require modification or replacement to accommodate the larger 1350 series u-joint and 60 series housing



Extreme 60 Front Features

  Designed and optimized using computer simulation, the Extrem 60 is reinforced in critical areas with thicker walls and heavier webbing to deliver maximum strength, durability, and rigidity

  The front high-pinion radius bottom center section with a replaceable skid plate delivers unmatched ground clearance and improves obstacle slide-over by presenting a smooth curve

  Large 3.5 in. diameter x .375 wall axle tubes (left) are more than two times stronger than the stock axle tubes (right) without being overweight or sacrificing ground clearance

  High volume flow-thru recirculating oil system keeps pinion bearings bathed in cool oil, reducing operating temperatures and eliminating oil starvation issues

  Front axle steering geometry is optimized for large tires and lifted vehicles with increased caster and pinion angles

  The included heavy-duty tie rod features a 1.375 OD x .375 wall heat-treated chromoly tube and 1-ton forged rod ends that are designed to withstand off-road abuse and large tires

  Massive forged 1-ton inner knuckles (right) are designed to stand up to severe off-road punishment and large tires without flinching

  Complete 1-ton outer steering assemblies deliver massive strength, while 14.25-inch diameter vented rotors and OE Jeep Gladiator dual-piston calipers provide the increased brake capacity required for stopping big tires

  Warn® premium manual locking hubs are the industry standard for durability and reliability

  Rock-proof Currie nodular iron front cover protects expensive internals, adds structural support to the housing's face flange, and locates the driver’s side upper control arm mount

Powder Coat   UV Stabele Satin black powder coat finish adds long-lasting protection against rust and corrosion to keep your Extreme 60 looking its best



Extreme 60 Rear Features

  Designed and optimized using computer simulation, the housing is reinforced with thicker walls and webbing and utilizes standard cut gears to deliver maximum strength, durability

  Large 3.5 in. diameter x .375 wall axle tubes (left) are more than two times stronger than the stock axle tubes (right) without being overweight or sacrificing ground clearance

  Currie 40-spline full-floating chromoly axles are the largest in the industry and provide 1.5x the strength of 35-spline chromoly axles

    Desert race-inspired heat-treated Chromoly spindles with billet steel full-floating hubs carry the vehicle's weight, eliminating the influence of side loading and impact shock on axle durability. Modified OEM backing plates and parking brake assemblies provide reliable operation with broad availability of serviceable wear items

  13.750-inch vented rotors and OE Gladiator calipers provide the stopping power with factory pedal feel, while the 8-lug bolt pattern improves reliably with large, heavy tires

  Rock-proof Currie nodular iron cover protects expensive internals and adds structural support to the housing's face flange for increased rigidity

Powder Coat   UV Stable Satin black powder coat finish adds long-lasting protection against rust and corrosion to keep your Extreme 60 looking its best







Notes

ABS Sensors - Axles do not include ABS sensors, the factory sensors from the stock axles must be retained and installed on the Extreme 60 front and rear axle assemblies

Computer Programming: A programmer is required to reset the gear ratio and tire height settings in the vehicle's computer for the proper function of the vehicles stability control and transmission shift points when larger than stock tires are installed

Brake Upgrade: The big brake kit included with the Extreme 60 uses 14.250-inch rotors and Jeep Gladiator dual-piston calipers in the front and 13.75-inch vented rotors and Gladiator calipers in the rear to provide the stopping power required for large tires

Wheel and Tire Size: For proper brake caliper clearance, 17-inch or larger wheels are required. Wheels must have a 4.9-inch (125 mm) hub bore with a recommended 4.5-inch backspace. The maximum recommended tire size is 42 inches

Overall Width: Axles are offered in widths of 70 or 72 inches between wheel mounting surfaces. Additional width improves the frame and body clearance for large tires and provides additional space for coil-over shocks.

Steering Stabilizer: The Extreme 60 ram assist bracket requires an aftermarket stud-style track bar bolt to accommodate a steering stabilizer. Trac bar bolts are available from FOX Racing P/N 803-02-028 or Synergy Manufacturing P/N 8806-01

The Extreme 60 axles for 2007 thru 2018 Jeep JK Wrangler are complete bolt-in axle assemblies with all required brackets and mounts in place. The vehicle's factory driveshafts will require modification or replacement to accommodate the larger 1350 series u-joint and 60 series housing



Extreme 60 Front Features

  Designed and optimized using computer simulation, the Extrem 60 is reinforced in critical areas with thicker walls and heavier webbing to deliver maximum strength, durability, and rigidity

  The front high-pinion radius bottom center section with a replaceable skid plate delivers unmatched ground clearance and improves obstacle slide-over by presenting a smooth curve

  Large 3.5 in. diameter x .375 wall axle tubes (left) are more than two times stronger than the stock axle tubes (right) without being overweight or sacrificing ground clearance

  High volume flow-thru recirculating oil system keeps pinion bearings bathed in cool oil, reducing operating temperatures and eliminating oil starvation issues

  Front axle steering geometry is optimized for large tires and lifted vehicles with increased caster and pinion angles

  The included heavy-duty tie rod features a 1.375 OD x .375 wall heat-treated chromoly tube and 1-ton forged rod ends that are designed to withstand off-road abuse and large tires

  Massive forged 1-ton inner knuckles (right) are designed to stand up to severe off-road punishment and large tires without flinching

  Complete 1-ton outer steering assemblies deliver massive strength, while 14.25-inch diameter vented rotors and OE Jeep Gladiator dual-piston calipers provide the increased brake capacity required for stopping big tires

  Warn® premium manual locking hubs are the industry standard for durability and reliability

  Rock-proof Currie nodular iron front cover protects expensive internals, adds structural support to the housing's face flange, and locates the driver’s side upper control arm mount

Powder Coat   UV Stabele Satin black powder coat finish adds long-lasting protection against rust and corrosion to keep your Extreme 60 looking its best



Extreme 60 Rear Features

  Designed and optimized using computer simulation, the housing is reinforced with thicker walls and webbing and utilizes standard cut gears to deliver maximum strength, durability

  Large 3.5 in. diameter x .375 wall axle tubes (left) are more than two times stronger than the stock axle tubes (right) without being overweight or sacrificing ground clearance

  Currie 40-spline full-floating chromoly axles are the largest in the industry and provide 1.5x the strength of 35-spline chromoly axles

    Desert race-inspired heat-treated Chromoly spindles with billet steel full-floating hubs carry the vehicle's weight, eliminating the influence of side loading and impact shock on axle durability. Modified OEM backing plates and parking brake assemblies provide reliable operation with broad availability of serviceable wear items

  13.750-inch vented rotors and OE Gladiator calipers provide the stopping power with factory pedal feel, while the 8-lug bolt pattern improves reliably with large, heavy tires

  Rock-proof Currie nodular iron cover protects expensive internals and adds structural support to the housing's face flange for increased rigidity

Powder Coat   UV Stable Satin black powder coat finish adds long-lasting protection against rust and corrosion to keep your Extreme 60 looking its best







Notes

ABS Sensors - Axles do not include ABS sensors, the factory sensors from the stock axles must be retained and installed on the Extreme 60 front and rear axle assemblies

Computer Programming: A programmer is required to reset the gear ratio and tire height settings in the vehicle's computer for the proper function of the vehicles stability control and transmission shift points when larger than stock tires are installed

Brake Upgrade: The big brake kit included with the Extreme 60 uses 14.250-inch rotors and Jeep Gladiator dual-piston calipers in the front and 13.75-inch vented rotors and Gladiator calipers in the rear to provide the stopping power required for large tires

Wheel and Tire Size: For proper brake caliper clearance, 17-inch or larger wheels are required. Wheels must have a 4.9-inch (125 mm) hub bore with a recommended 4.5-inch backspace. The maximum recommended tire size is 42 inches

Overall Width: Axles are offered in widths of 70 or 72 inches between wheel mounting surfaces. Additional width improves the frame and body clearance for large tires and provides additional space for coil-over shocks.

Steering Stabilizer: The Extreme 60 ram assist bracket requires an aftermarket stud-style track bar bolt to accommodate a steering stabilizer. Trac bar bolts are available from FOX Racing P/N 803-02-028 or Synergy Manufacturing P/N 8806-01

Products specifications
Vehicle Fitment 2007 thru 2018 Jeep Wrangler JK and JKU
Extreme 60 ___________________________________________________________________________________
Pinion Yoke 1350 series u-joint

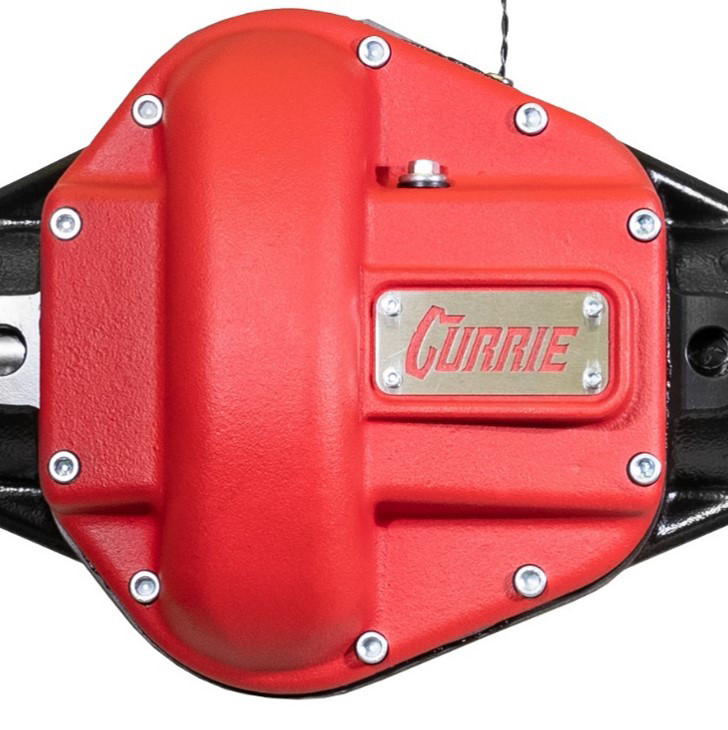

Differential Cover Currie nodular-iron cover, Red
Axle Tubes 3.5 inch diameter, .375 wall DOM tube
Suspension Brackets Heavy gauge 3/16 steel mounting brackets
Width 70-inches wide (between wheel mounting surfaces)
Wheel Bolt Pattern 8-lug (8 x 6.5 in.) with 9/16 studs
Finish UV stable satin black powder coat
Front Extreme 60 ___________________________________________________________________________________
Center Section Extreme 60 nodular iron high-clearance center section with rotated cover, and replaceable hardened steel skid plate, Extreme 60 standard rotation nodular iron center section with thick webbing and reinforcement in critical areas
Pinion Oiling High volume flow-thru recirculating oil system
Gear Set 60 series reverse rotation thick gear sets
Skid Plate AR400 hardened steel skid plate
Axles Currie Extreme 35-spline (1.5 in. diameter) 4340 Chromoly inner and outer axle shafts with 1480 u-joints, Currie Extreme double splined full-floating 40-spline (1.7-inch diameter) 4340 heat-treated chromoly
End Forgings Currie 1-ton heavy-duty forged steel inner C’s
Steering Knuckles Currie 1-ton nodular iron steering knuckles machined and keyed for high-steer arms
Unit Bearings 1-ton unit bearings with JK tone rings installed for ABS and ESP retention
Hubs Warn Premium locking 35-spline hubs
Brake Rotors 14.250-inch vented rotors (over 2.35 in. larger diameter than stock, provides increased brake force), Upgraded 13.750-inch vented rotors (1.85 in. larger diameter than stock, provides increased brake force)
Brake Calipers Jeep Gladiator dual-piston front calipers, Jeep Gladiator truck rear calipers
Tie Rod 1-ton 1.357 in. OD x .375 wall heat treated chromoly tube with forged tie rod ends
Geometry Optimized for stock height or lifted vehicles with 5 degrees of pinion angle and 5 degrees of caster angle, Optimized for stock height and lifted vehicles with 5 degrees of pinion angle
Track Bar Mount Integrated raised track bar and ram-assist mount setup for PSC 8-inch travel ram
Rear Extreme 60 ___________________________________________________________________________________
Floater Spindle Currie Full-float 2.5-inch heat-treated 4140 Chromoly spindles
Floater Hub Currie billet steel full-floating hubs with 40-spline drive flanges, JK tone rings installed
Parking Brake Modified for floater OEM backing plate and parking brake assembly
