Currie 44 - Jeep Wrangler JL Front Axle Assembly













** Electric Locker Wiring Notice **



Use of the factory Rubicon Locker switch with an aftermarket wiring harness adapter does not supply adequate voltage to operate the electric locker, and will void the locker warranty.

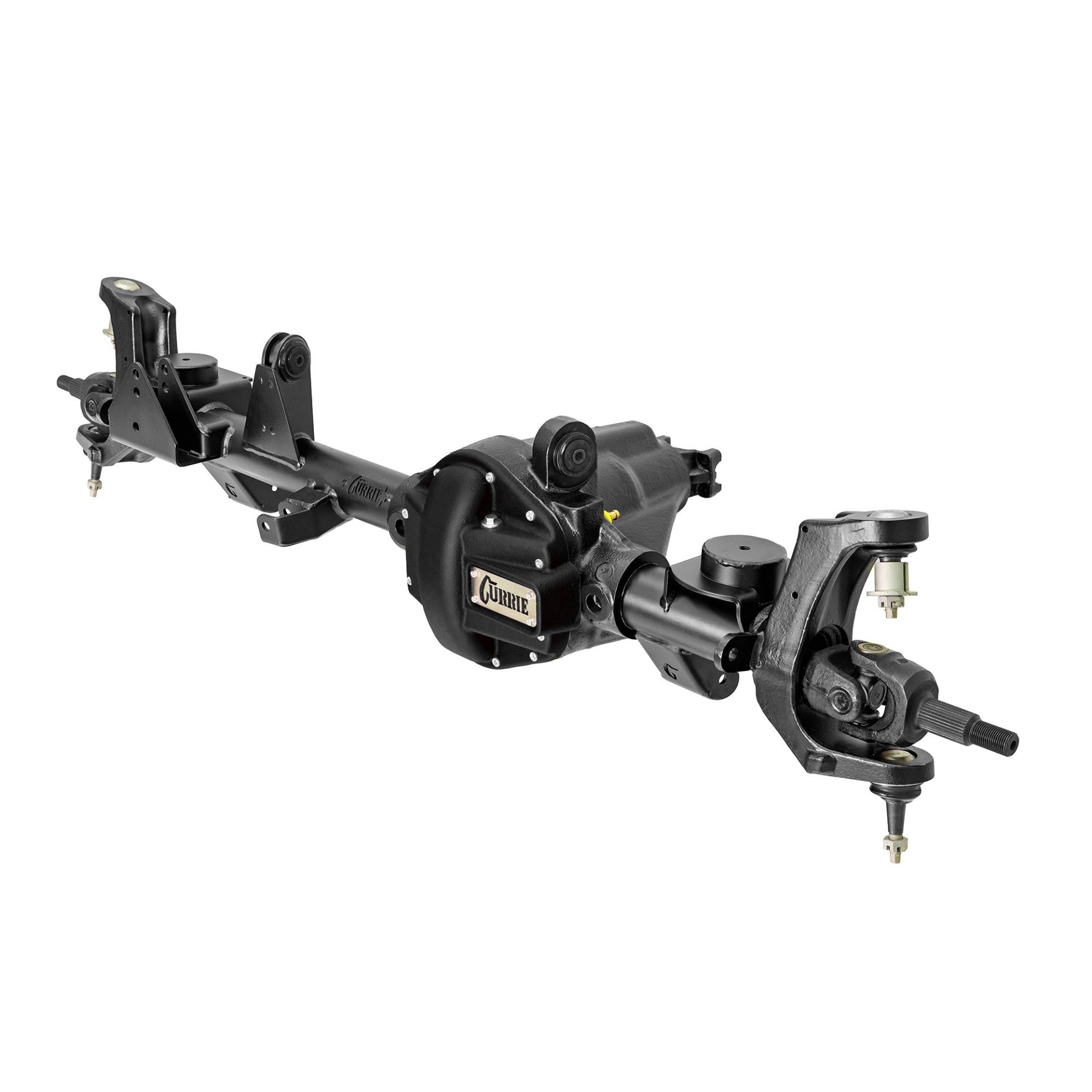

The Currie 44 front axle assembly is a direct bolt-in assembly for 2018 and newer Jeep Wrangler JL Vehicles. Featuring Rubicon width for tire clearance, a significantly stronger center casting, axle tubes, forged knuckles, and chromoly axles, the Currie 44 is designed for heavy off-road with up to 37-inch tall tires.


Currie 44 Features:

  • Direct Bolt-in Fit for Wrangler JL
  • 68 in. JL Rubicon Width (+1.5 in. Over Non-Rubicon Models)
  • Currie High-Pinion Reinforced Center Section
  • 3 in. Diameter, .5 in. Wall DOM Axle Tubes
  • Currie Forged JL Inner Knuckles
  • 4340 Chromoly Axles Inner and Outer Axles
  • Steering Geometry and Brackets Setup for Lifted Vehicles
  • Uses Proven, and Readily Available JK 44 Gears and Locker
  • Satin Black Powder Coat Finish for Long Lasting Protection
  • Retains the Vehicle's Stock Tie Rod, Steering Knuckle Assemblies, Brakes, and Wheels

*** SELECT OPTIONS TO BUILD AND PRICE ***

SKU: LF44
Estimated Lead Time: 6 weeks
*
*
$5,850.00

The Currie 44 front axle assembly is a direct bolt-in solution that reduces the overall cost by enabling you to retain the complete stock JL outer knuckle assemblies (brakes, hubs, etc.), steering, and stock wheel bolt pattern.



Currie 44 Features

  Currie 44 high-pinion nodular iron center section features 14 lbs of reinforcement over a stock 44 with thicker walls and webbing to deliver superior strength and rigidity

  Large 3-in. diameter x .5-in. wall axle tubes (left) are more than 2.5 times stronger than the stock tubes (right)

  Currie heavy-duty forged inner knuckles (right) are massively more robust than the stock knuckles (left) and are designed for severe off-road use with tall tires

  Currie Performance 4340 chromoly axles provide superior end-to-end strength over OEM carbon steel axles. Black oxide coating helps protect from surface corrosion for improved durability



Lower control arm mounts are one-piece construction with integrated skid plates to help fend off bracket-seeking rocks

  Included pinion flange allows the factory driveshaft to be used without modification

  Rock-proof Currie nodular iron front cover protects expensive internals and adds structural support to the housing's face flange

Powder Coat   UV Stabel Satin black powder coat finish adds long-lasting protection against rust and corrosion to keep your Currie 44 looking its best





Notes

Computer Programming: 2012 and newer vehicles require a computer programmer, such as the AEV ProCal Module to reset the gear ratio and tire height in the vehicle's computer for the proper function of the vehicles stability control and transmission shift points

Outer Knuckle Assemblies: The Currie 44 is designed to reuse the complete stock JLouter knuckle assemblies from the ball joints out (knuckles, hubs, disk brake calipers, and rotors)

Overall Width: Axle width is 68.0 inches (stock JK width) between wheel mounting surfaces

Tire Size: Recommended maximum 37-inch tire size due to the inherent limitations of the stock brakes, wheel bearings, and axle u-joints





The Currie 44 front axle assembly is a direct bolt-in solution that reduces the overall cost by enabling you to retain the complete stock JL outer knuckle assemblies (brakes, hubs, etc.), steering, and stock wheel bolt pattern.



Currie 44 Features

  Currie 44 high-pinion nodular iron center section features 14 lbs of reinforcement over a stock 44 with thicker walls and webbing to deliver superior strength and rigidity

  Large 3-in. diameter x .5-in. wall axle tubes (left) are more than 2.5 times stronger than the stock tubes (right)

  Currie heavy-duty forged inner knuckles (right) are massively more robust than the stock knuckles (left) and are designed for severe off-road use with tall tires

  Currie Performance 4340 chromoly axles provide superior end-to-end strength over OEM carbon steel axles. Black oxide coating helps protect from surface corrosion for improved durability



Lower control arm mounts are one-piece construction with integrated skid plates to help fend off bracket-seeking rocks

  Included pinion flange allows the factory driveshaft to be used without modification

  Rock-proof Currie nodular iron front cover protects expensive internals and adds structural support to the housing's face flange

Powder Coat   UV Stabel Satin black powder coat finish adds long-lasting protection against rust and corrosion to keep your Currie 44 looking its best





Notes

Computer Programming: 2012 and newer vehicles require a computer programmer, such as the AEV ProCal Module to reset the gear ratio and tire height in the vehicle's computer for the proper function of the vehicles stability control and transmission shift points

Outer Knuckle Assemblies: The Currie 44 is designed to reuse the complete stock JLouter knuckle assemblies from the ball joints out (knuckles, hubs, disk brake calipers, and rotors)

Overall Width: Axle width is 68.0 inches (stock JK width) between wheel mounting surfaces

Tire Size: Recommended maximum 37-inch tire size due to the inherent limitations of the stock brakes, wheel bearings, and axle u-joints





Products specifications
Center Section Currie 44 high-pinion nodular-iron center section with thicker walls and webbing
Gear Set Larger/stronger Dana 44 8.8” late model JK ring and pinion set
Pinion Yoke 1310 (stock size) pinion companion flange
Differential Cover Currie nodular-iron cover with gasketed fill plug with dip stick
End Forgings Currie heavy-duty forged steel inner C’s
Axle Tubes 3 in. diameter, .5 wall DOM tube
Axles Currie Performance 4340 chromoly 30/32-spline inner/outer axles
Suspension Brackets Heavy gauge 3/16” laser cut steel brackets
Control Arm Mounts Upper control and lower control arm mounts are 3/16 thick, one-piece construction; lower mounts feature an integrated skid plate
Geometry Optimized for stock height or lifted vehicles with 5 degrees of pinion angle to reduce driveshaft angle and 5 degrees of caster for improved steering
Width 68-inches between wheel mounting surfaces (stock JL Ribicon width)
Wheel Bolt Pattern 5 on 5 inch with 1/2 inch studs (standard JL pattern)
Finish Black satin powder coat
