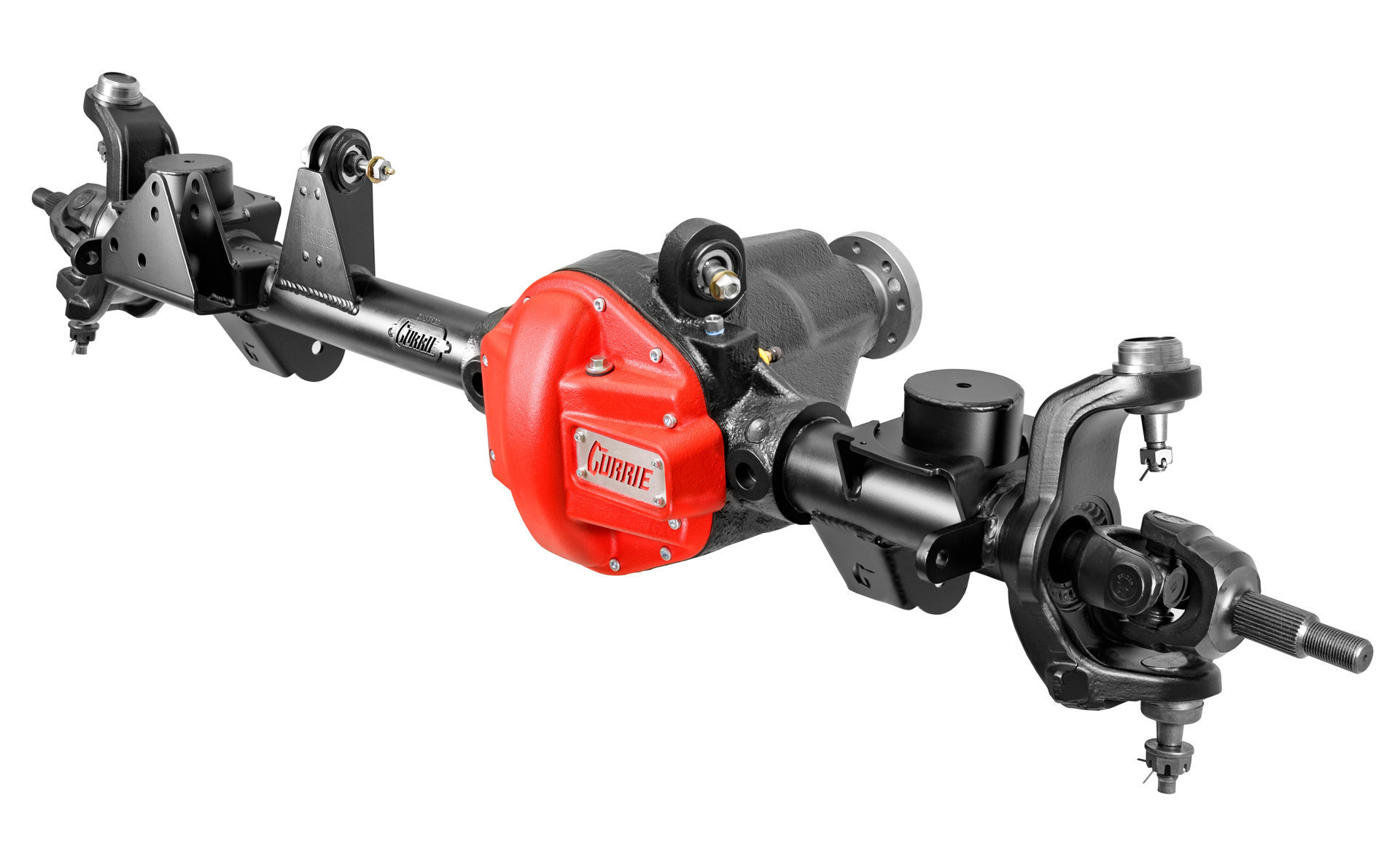

The Currie 44 front axle assembly is a direct bolt-in assembly for 2007 thru 2017 Jeep Wrangler JK/JKU Vehicles. Featuring a significantly stronger center casting, axle tubes, forged knuckles, and chromoly axles, the Currie 44 is designed for heavy off-road with up to 37-inch tall tires.
Currie 44 Features:
- Direct Bolt-in Fit for Wrangler JK
- Stock 65.375 in. JK Width
- 5.13 Gear Ratio
- Eaton ELocker
- Currie High-Pinion Reinforced Center Section
- 3 in. Diameter, .5 in. Wall DOM Axle Tubes
- Currie Forged JK Inner Knuckles
- 4340 Chromoly Axles with 1350 U-Joints
- Accepts Stock JK Outer Knuckle Assemblies
- Steering Geometry and Brackets Setup for Stock Height or Lifted Vehicles
- Satin Black Powder Coat Finish for Long Lasting Protection
- Retains the Vehicle's Stock Tie Rod, Steering Knuckle Assemblies, Brakes, and Wheels
- See Notes Below for Installation Requirements
*** SELECT OPTIONS TO BUILD AND PRICE ***
Stock Status:
Out of stock
-
*
-
The Currie 44 axle assembly is a direct bolt-in solution that reduces the overall cost by enabling you to retain the complete stock JK outer knuckle assemblies (brakes, hubs, etc.) and stock wheel bolt pattern.
Currie 44 Features
|
|
Currie 44 high-pinion nodular iron center section features 14 lbs of reinforcement over a stock 44 with thicker walls and webbing to deliver superior strength and rigidity |
|
|
|
|
|
Large 3 in. diameter x .5 in. wall axle tubes (left) are more than 2.5 times stronger than the stock tubes (right) |
|
|
|
|
|
Currie heavy-duty forged inner knuckles (right) are massively stronger than the stock knuckles (left) and are designed for severe off-road use with up to 37” tall tires |
|
|
|
|
|
Currie Performance 4340 chromoly axles with larger Rubicon 1350 u-joints provide superior end-to-end strength over OEM carbon steel axles. Black oxide coating helps protect from surface corrosion for improved durability
|
|
|
|
|
|
Lower control arm mounts are one-piece construction with integrated skid plates to help fend off bracket-seeking rocks |
|
|
|
|
|
The included 1310 pinion flange allows the factory driveshaft to be used without modification
|
|
|
|
|
|
Rock-proof Currie nodular iron front cover protects expensive internals and adds structural support to the housing's face flange |
|
|
|
|
|
UV Stabel Satin black powder coat finish adds long-lasting protection against rust and corrosion to keep your Currie 44 looking its best |
Notes
Outer Knuckle Assemblies: The Currie 44 is designed to reuse the complete stock Wrangler outer knuckle assemblies from the ball joints out (knuckles, hubs, disk brake calipers, and rotors)
Overall Width: Axle width is 65.375 inches (stock JK width) between wheel mounting surfaces
Vehicle Lift: If using the factory height suspension or a leveling kit without bump stop spacers, an aftermarket track bar is required to clear the differential cover. The RockJock 4x4 track bar RJ-9120FJKF provides ample clearance.
Tire Size: Recommended maximum 37-inch tire size due to the inherent limitations of the stock brakes, wheel bearings, and axle u-joints
